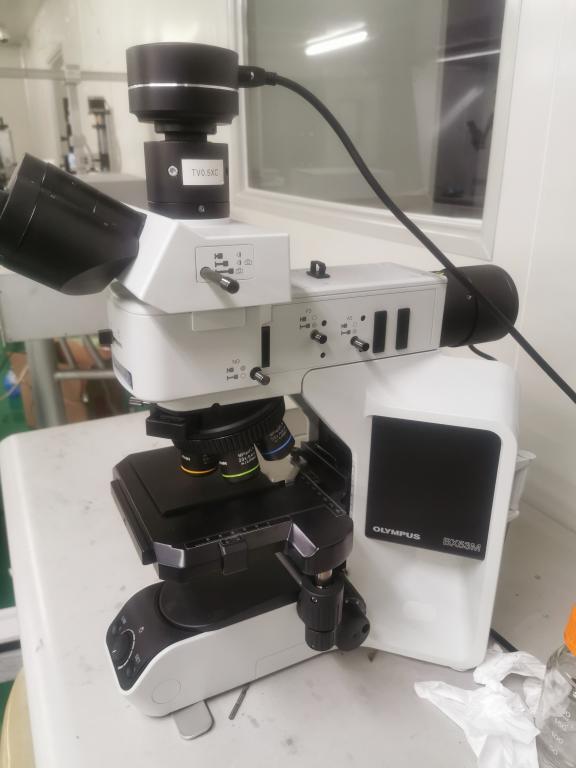

Instrument Name：Orthographic metallographic microscope
Serial number for instruments：2003001S
specifications and models：OlympusBX53
Date of purchase：2020/7/31
Parameters：Generating volume:
1. microscope stand.
Focusing components:Move the stage up and down to focus, the movable range is 25mm, the moving distance of the fine focus knob per rotation is 0.1mm, and the moving distance of the coarse focus knob per rotation is 17.8mm It has tension adjustment function and upper limit locking mechanism.
Rated parameters:Ac adapter: input 110-240V 50-60HZ 0.4A, output 5V 2.5A
Maximum power consumption:BX53MTRF-S:10.1W,28.1VA； BX53MRF-S:5.8W,18.8VA
2. Observation tube.
Binocular observation tube: U-BI30-2: field of view: 22; U-TBI-3: field of view number 22, inclined type.
Trieyepiece observation tube: U-SWTR-3: field of view 3; U-SWETTR-5: field of view number 22, inclined type, used for positive observation; U-TR30-2: number of fields of view 22; U-TR30IR: field of view number 22, used for infrared observation; U-ETR-4: field of view number 22, used for positive observation; U-TTR-2: field of view number 22, inclined type.
3. Illuminator for reflected light illumination.
BX3M-KMA-S: used for bright field /DIC/ simple polarization observation, with built-in LED light source; BX3M-RLA-S: used for bright field/dark field /DIC/ simple polarization/infrared observation; BX3M-RLAS-S: used for bright field/dark field /DIC/ simple polarization observation, coded, with built-in LED light source; BX3M-URAS-S: used for bright field/dark field/simple polarization/fluorescence/infrared observation, coded, detachable beam splitter module.
Functions：High-tech products developed by the perfect combination of optical microscope technology, photoelectric conversion technology and computer image processing technology can easily observe metallographic images on a computer, thereby analyzing and rating metallographic maps, and outputting and printing pictures.
